AIR & OIL COOLED SERVO STABILIZER

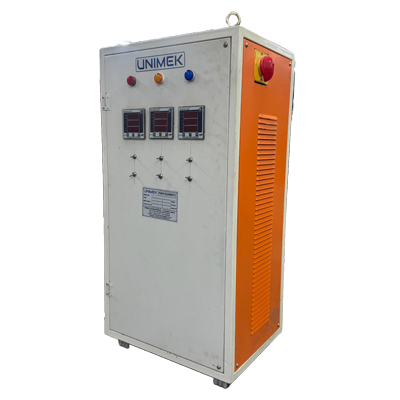

Oil Cooled Servo Stabilizer
UNIMEK Oil-cooled Servo Stabilizers change the level of voltage in a clockwise or anticlockwise manner using a strong AC synchronous motor for precise voltage management. These three phrase stabilizers have a long-lasting motor controlled stabilization technology that ensures safe voltage delivery.

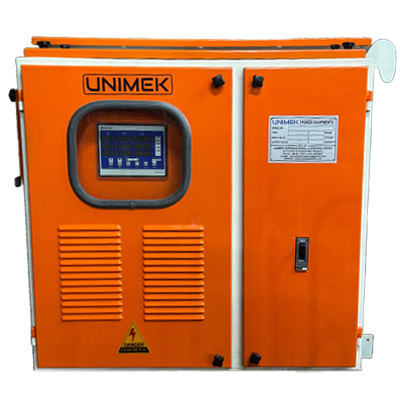

Air Cooled Servo Stabilizer
UNIMEK Air-cooled Servo Stabilizer is a device with three-phase air cooling available with capacities ranging up to 50kVA. This environment-friendly, cost-effective device offers an efficiency of >95%.
Technical Specification
| Technical Parameters | Single Phase | Three Phase | Customized |
|---|---|---|---|
| Rating : 20 Kva to 2000 Kva | 10 KVA to 50 KVA | 20 KVA to 2000 KVA | As per client Requirement |
| Input Voltage Range | 195 V - 280 V AC | 340 V - 480 V AC | |
| 170 V - 280 V AC | 300 V - 480 V AC | ||
| 155 V - 280 V AC |
270 V - 480 V AC 240 V - 480 V AC |
||
| Output Adjustable | 220 - 240 V AC | 380 - 415 V AC | Yes |
| Type | Balanced / Unbalanced Type | Yes | |
| Output Voltage | 230 V | 400 V | Yes |
| Insulation | Class A / Class B | Yes | |
| Frequency Hz | 50 Hz | Yes | |
| Vector Group | Star / Star, 3 Phase + Neutral | Yes | |
| Effect of Power Factor | Nill | Yes | |
| Nature of Cooling | Air Cooled Servo Stabilizer | Yes | |
| Oil Cooled Servo Stabilizer | Yes | ||
| Response Time | As per IS 9815 Standards | Yes | |
| Installation | Indoor | Yes | |
| Optional Protection | Overload / Short Circuit Protection | Optional | |
| Manual Bypass - Changeover | External in Higher Capacity | ||
| Input MCB / MCCB | Optional | ||
| Protection | Under / Over Voltage Cut off Protection | Yes | |
| Single Phase Prevention | Yes | ||
| Ambient Temperature | 0 - 55 °C | Yes | |
| General Efficiency of our Servo Stabilizer | As per IS 9815 Standards | Yes | |
| Metering | Three Segment Display | Yes | |
