Mig/Mag Welding Machines

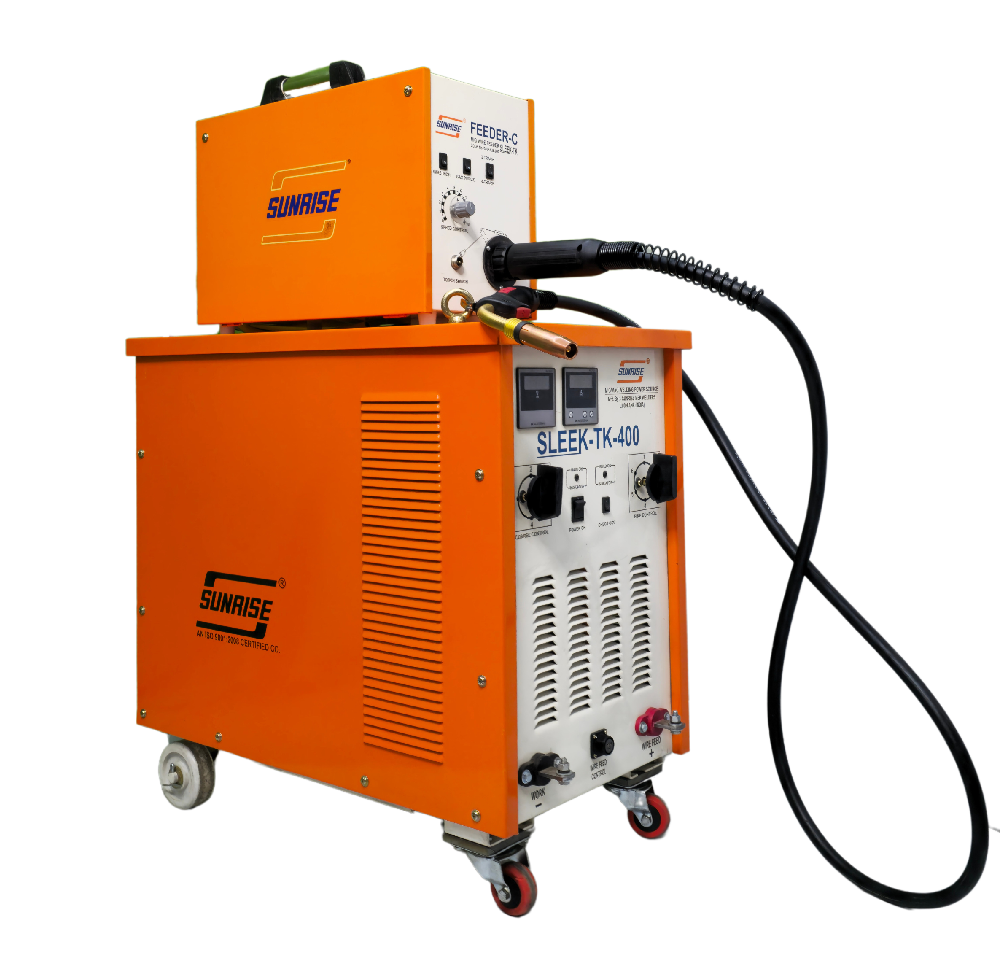

DIODE BASED MIG/MAG WELDING MACHINES
TECHNICAL FEATURES
| DC POWER SOURCE | SLEEK-TK-250 | SLEEK-TK-400 | SLEEK-TK-600 | |
| Input Supply |
415+_10% Volts, 3 Ph., 50Hz |
|||
| Max. KVA @ 60% duty cycles | KVA | 9.0 | 19.0 | 25.0 |
| @100% duty cycles | KVA | 7.0 | 14.7 | 19.4 |
| Open Circuit Voltage | VDC | 16-36 | 18-50 | 18-58 |
| Welding Current @ 60% duty cycles | Amps | 250 | 400 | 600 |
| @100% duty cycles | Amps | 195 | 310 | 465 |
| Cooling |
Forced Air |
|||
| Insulation class | H | H | H | |
| Protection class |
IP 23 |
|||
| Weight (Approx) | Kgs. | 115 | 170 | 210 |
| WIRE FEEDER | ||||
| Drive System | 2 Roll, PMDC Motor | 2 Roll, PMDC Motor | 2 Roll, PMDC Motor | |
| Wire Feed Speed | m/min. | 0.5~1.2 | 0.5~22 | 0.5~22 |
| Wire Diamter | mm | 0.8~1.2 | 0.8~1.6 | 0.8~1.6 |
| Weight (Approx) | mm | 17 | 17 | 17 |
| WELDING TORCH (3M LENGTH) | ||||
| Rated Current | Amps | 250 | 400 | 600 |
| Cooling Type | Gas | Gas | Gas | |

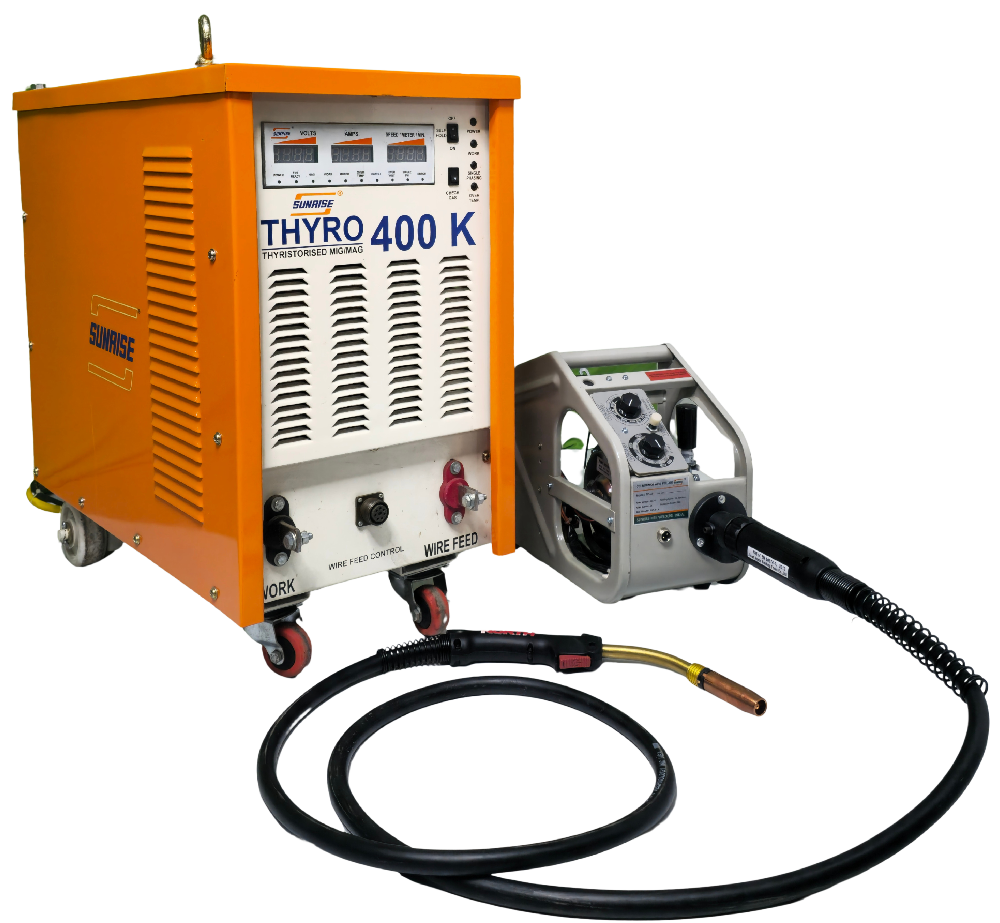

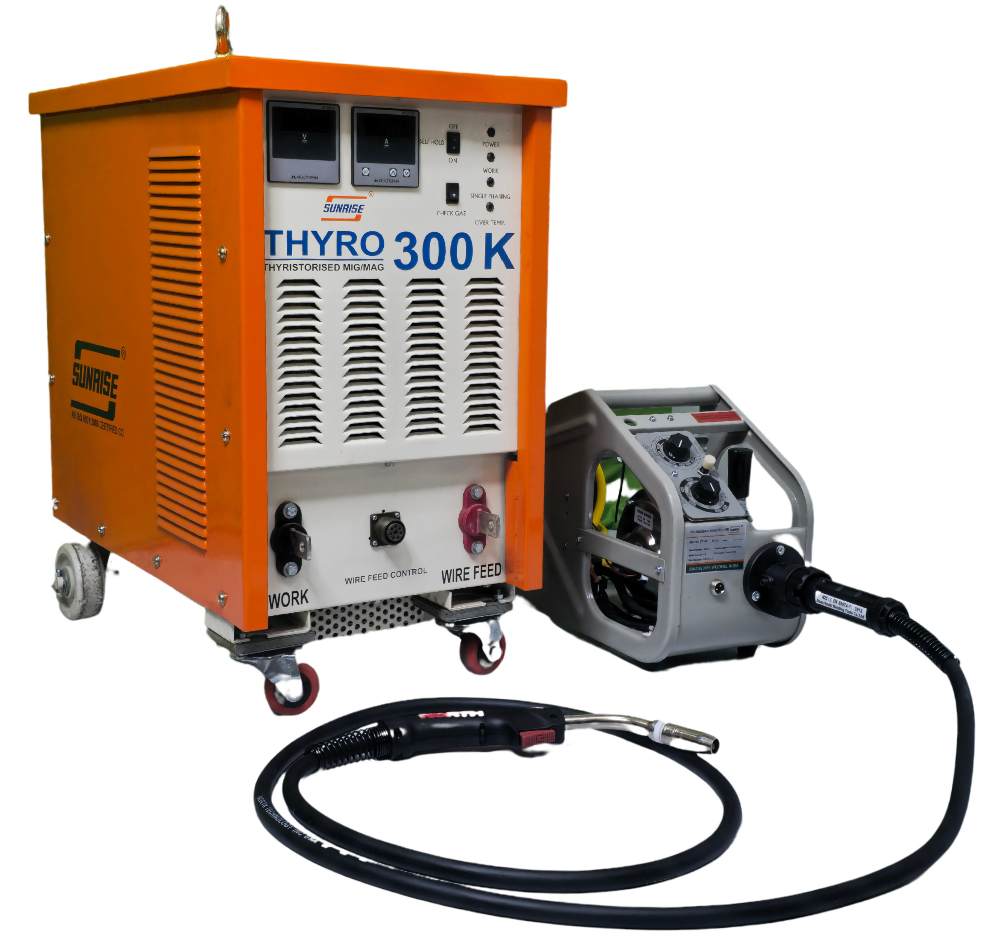

FULLY THYRISTORISED MIG/MAG WELDING MACHINES
TECHNICAL FEATURES
| DC POWER SOURCE | TNYRO 300K | TNYRO 400K | TNYRO 600K | |
| Input Supply |
415+-10% Volts, 3 Ph, 50Hz |
|||
| Max. Pt . Current | Amps | 15 | 27 | 40 |
| Rated Input Power | KVA | 10.4 | 19.0 | 29.0 |
| Rated Welding Current | ||||
| @60% Duty Cycles | Amps | 300 | 400 | 600 |
| @100% Duty Cycles | Amps | 230 | 310 | 465 |
| Output Voltage | VDC | 15~30 | 15~40 | 16~48 |
| Cooling | Forced Air Cooled | |||
| Insulation | Class | H | H | H |
| Weight (Approx) | Kgs. | 115 | 170 | 225 |
| WIRE FEEDERS | ||||
| Applicable Wire Diameter Mid Steel | mmm 0 | 0.8~1.2 | 0.8~1.6 | 0.8~2.0 (FC) |
| Stainless Steel | mm 0 | 08~1.2 | 0.8~1.6 | 0.8~1.6 |
| Aluminium | mm 0 | 1.2 | 1.2~1.6 | 1.2~1.6 |
| Drive System | Type | 2 Roll | 2 Roll | 2/4 Roll |
| Approx Weight | 9 | 9 | 9/11 | |
| WELDING TORCH (3M LENGTH) | ||||
| Rated Current | Amps | 250 | 360 | 500 |
| Cooling | Type | Gas | Gas | Gas/ Water |

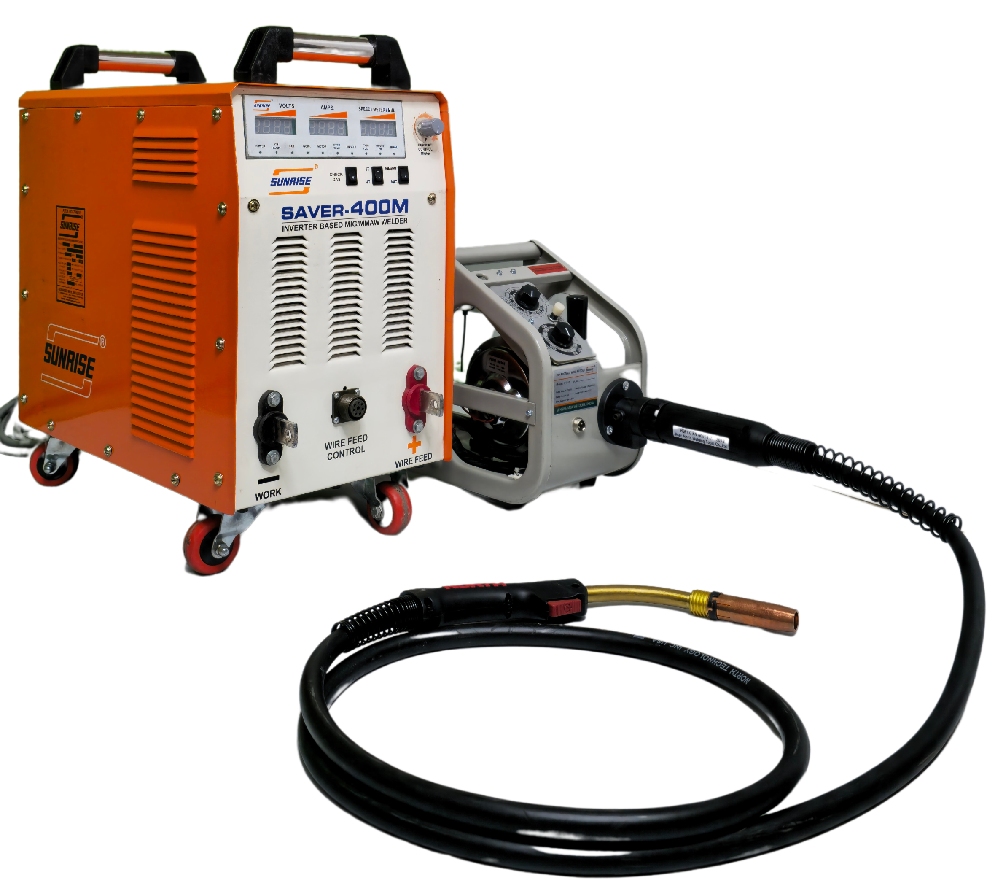

INVERTER BASED MIG/MAG/MMAW WELDING MACHINES
TECHNICAL FEATURES
| DC POWER SOURCE | SAVER 250M |
SAVER 300M |
SAVER 400M | SAVER 500M | SAVER 600M | |
| Input Supply |
415+-10% Volts, 3 Ph, 50Hz |
|||||
| Max. Pt . Current | Amps | 10 | 11 | 17 | 21 | 25 |
| Rated Input Power | KVA | 7.1 | 12.2 | 12.2 | 15 | 18 |
| Rated Welding Current | ||||||
| @60% Duty Cycles | Amps | 250 | 300 | 400 | 500 | 600 |
| @100% Duty Cycles | Amps | 190 | 230 | 310 | 390 | 465 |
| Output Voltage | VDC | 15-40 | 15~45 | 15~50 | 15-50 | 15~55 |
| Cooling | Forced Air Cooled | |||||
| Insulation | Class | H | H | H | H | H |
| Weight (Approx) | Kgs. | 42+10% | 47+10% | 56+10% | 68+10% | |
| WIRE FEEDERS | ||||||
| Applicable Wire Diameter Mid Steel | mm Ø | 0.8-10 | 0.8~1.2 | 0.8~1.6 | 0.8-1.6 | 0.8~2.0 (FC) |
| Stainless Steel | mm Ø | 0.8-10 | 08~1.2 | 0.8~1.6 | 0.8-1.6 | 0.8~1.6 |
| Aluminium | mm Ø | ~ | 1.2 | 1.2~1.6 | 1.2-1.6 | 1.2~1.6 |
| Drive System | Type | 2 Roll | 2 Roll | 2 Roll | 2/4 Roll | 2/4 Roll |
| Approx Weight | ~ | 9 | 9 | 9/11 | 9/11 | |
| WELDING TORCH (3M LENGTH) | ||||||
| Rated Current | Amps | 230 | 250 | 350 | 400 | 500 |
| Cooling | Type | Gas | Gas |
Gas |
Gas | Gas/ Water |
