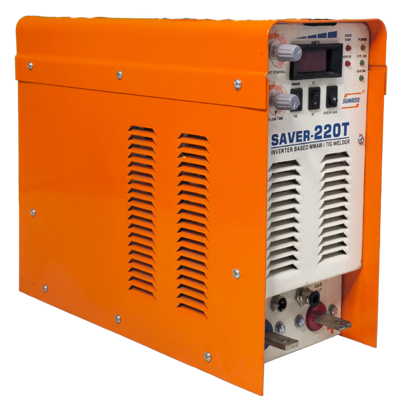

Inverter Based Welding Rectifiers
TECHNICAL SPECIFICATIONS
| MODELS | Units | SAVER 220 | SAVER 250 | SAVER 400 | SAVER 600 |
| V | 230±10% | 230/415±10% | 415±10% | 415±10% | |
| Input Supply | Ph/Hz | 1/50-60 | 1/50-60 | 3/50-60 | 3/50-60 |
| Max. Pr. Current | A | 21 | 25 | 18 | 28 |
| Rated Input Power | KVA | 4.6 | 5.5 | 12.9 | 20.0 |
| KVA @ 100% duty cycles | KVA | 3.5 | 4.2 | 10.0 | 15.5 |
| Output Current Range | A | 7~220 | 7~250 | 10~400 | 10~600 |
| Current @60% duty cycles | A | 220 | 250 | 400 | 600 |
| Current @100% duty cycles | A | 165 | 190 | 310 | 460 |
| Open Circuit Voltage | VDC | 75 | 75 | 85 | 90 |
| Class of Insulation | H | H | H | H | |
| Cooling | Forced Air Cooled | ||||
| Class of Insulation | IP 23 | IP 23 | IP 23 | IP 23 | |
| Electrodes to be welded | 2mm-4mm | 2mm-4mm | 2mm-6.3mm | 2mm-6.3mm | |
| (2.5mm Cont.) | (3.1mm Cont) | (5mm Cont.) | (6.3mm Cont.) | ||
| Weight (approx) |
Kgs. |
12±10% | 17±10% | 45±10% | 60±10% |
| Gas Value | Optional | Optional | Optional | Optional | |
